SKU: iWMC10411-04023-A180-MBDT Hãng sản xuất: KINCO Đường kính bánh xe: 180mm Tốc độ: 230 rpm - Torque: 40Nm Điện áp ngõ vào: 24~60VDC Chất lượng: Mới 100% - Vui lòng liên hệ để có giá Tốt Bảo hành: Chính hãng Chứng từ: Hóa đơn VAT, CO/CQ đầy đủ
Dịch vụ kèm theo: ✓ Thiết kế & thi công tủ điều khiển sử dụng Servo và Biến tần. ✓ Sửa chữa biến tần KINCO và ABB theo yêu cầu. ✓ Lắp đặt & vận hành tận nơi.

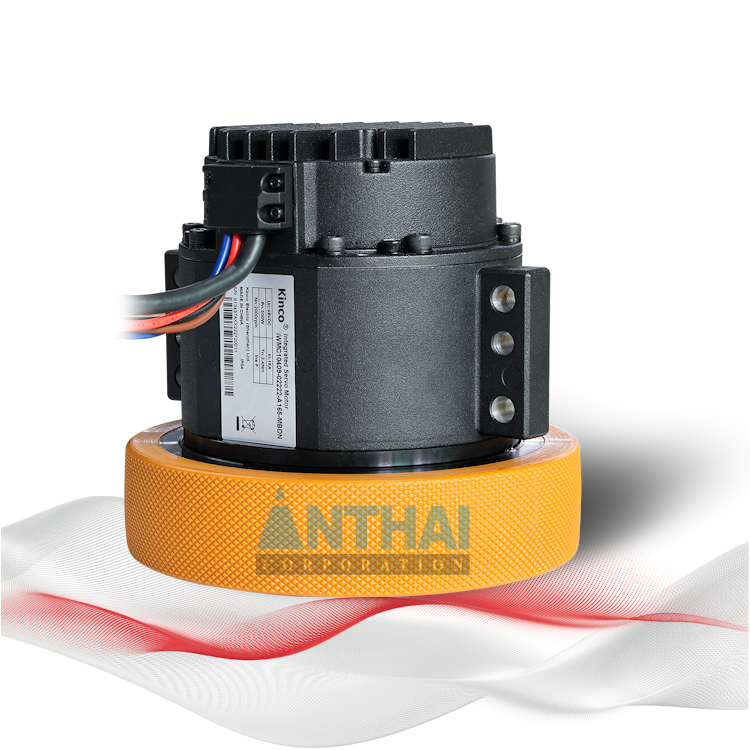

iWMC10411-04023-A180-MBDT Integrated Servo Wheel là bộ Servo tích hợp thế hệ mới của KINCO, với cấu trúc tích hợp Servo motor + Driver + Giảm tốc + Bánh xe giúp tối ưu hoá cho các xe tự hành như AGV, ARM, Lifter, .... Với thiết kế nhỏ gọn kèm mặt bích lắp đặt lên khung xe giúp việc bố trí và lắp đặt đơn giản, tiết kiệm không gian và thời gian hoàn tất hệ thống.
– Giá lắp đặt đơn giản, tiện lợi và có độ chính xác cao, cải thiện độ chính xác khi điều khiển. – Độ tin cậy cao: chống tiếp xúc niken, cải thiện độ ổn định và độ tin cậy của toàn bộ hệ thống. – Tương thích với các thiết bị điều khiển tiêu chuẩn khác của Kinco và chúng có thể được vận hành đồng bộ. – Một nhà cung cấp duy nhất các thành phần tích hợp có lợi cho việc bảo trì sản phẩm và giảm chi phí lưu kho. – Truyền thông CANopen tích hợp sẵn.
Ứng dụng iWMC10411-04023-A180-MBDT Integrated Servo Wheellý tưởng cho xe tự hành AGV/ARM, các phương tiện di động trong các ngành sản xuất Điện tử, Bán dẫn, Batterry, Lắp ráp ô tô, Cơ khí chế tạo, Thực phẩm và đồ uống F&B, Xử lý vật liệu, Nâng hạ, Dệt, In ấn, Cao su, Nhựa, Sản xuất & Chế biến gỗ, Gạch men, Xi măng, Sắt thép, Giấy và bột giấy, Logistics, Kho hàng tự động, ….
External braking resistor is required (depending on the operating conditions, mainly used for rapid starting and stopping)
Energy Consumption Braking Voltage Absorption Point
DC63V ± 2V（Default, settable）
Overvoltage alarm point
DC68V ± 2V
Undervoltage alarm point
DC18V ± 2V
Input Specifications
2 digital inputs / Common COMI terminal / High level: 12.5-30VDC / Low level: 0-5VDC / Maximum frequency: 1KHz / Input impedance: 5KΩ.
Output Specifications
1 digital output common COMO terminal / Maximum output current: 100mA
Brake
Built-in brake and control circuit
Forced Unlock Interface
1-way forced unlock interface, only for use when there is no power input to the servo wheel.
RS485 Debug Port
Maximum support for 115.2Kbps baud rate
CAN BUS
Maximum support for 1Mbps baud rate, CANopen protocol can be used to communicate with the controller
Drive Current
Max. continuous output current (rms)
16A
26A
Peak Current(PEAK)
100Ap(<2s)
100AP(<2s)
Motor
Rated RPM nN(rpm)
2000
2500
Rated Torque Tn(Nm)
2.4
4
Brake Holding Torque T(Nm)
4
Noise
<65dB
Cooling Methods
Natural cooling & Body-assisted cooling
Operating Environment
Operating Temperature
0～40°C
Storage Temperature
-20～60°C
Humidity (non-condensing)
90%RH below
Protection Level
IP54
Altitude
The rated working altitude is up to 1000m above sea level. For working altitudes above 1000m, a reduction of 1.5% is required for every 100 meters of rise in altitude, with a maximum working altitude of 2000 meters above sea level.
